Municipal Casting (Square/Rectangular)

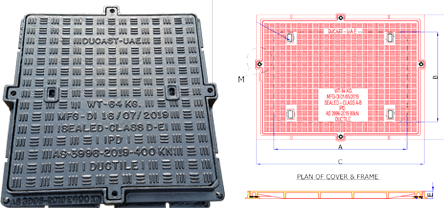

Square/Rectangular Covers & Frames

SQUARE/RECTANGULAR

  • Manufactured to AS3996-2019
  • Badging optional
  • Paint as per customer’s requirement.
  • Code
    Clear Opening
    Shape
    OverBase
    (mm)
    Depth (mm)
    Seal
    Loading Class
    Description
  • DA-1
    600 x 600 MM
    Square
    760 x 760
    80
    Single
    D-E (400KN)
    DI 600 x 600 MM Solid Top Class-E 400 KN Single Seal C&F With Rubber Seal & Bolted
  • DA-2
    600 x 600 MM
    Square
    7772 x 772
    52
    Double
    A-B (80KN)
    DI 600 x 600 MM Solid Top Class-B 80 KN Double Seal C&F With Rubber Seal & Bolted
  • DA-6
    750 x 600 MM
    Square
    865 x 720
    100
    Single
    D-E (400KN)
    DI 750 x 600 MM Solid Top Class-E 400 KN Single Seal C&F With Rubber Seal & Bolted
  • DA-7
    750 x 600 MM
    Square
    876 x 727
    50
    Single
    A-B (80KN)
    DI 750 x 600 MM Solid Top Class-B 80 KN Single Seal C&F With Rubber Seal & Bolted
  • DA-8
    900 x 600 MM
    Square
    1080 x 780
    45
    Double
    A-B (80KN)
    DI 900 x 600 MM Solid Top Class-B 80 KN Double Seal C&F With Rubber Seal & Bolted
  • DA-9
    1200 x 900 MM
    Square
    1370 x 1070
    100
    Single
    D-E (400KN)
    DI 1200 x 900 MM Solid Top Class-E 400 KN Hinged C&F With Rubber Seal & Bolted
  • DA-10
    1200 x 900 MM
    Square
    1370 x 1070
    100
    Single
    A-B (80KN)
    DI 1200 x 900 MM Solid Top Class-B 80 KN Hinged C&F With Rubber Seal & Bolted
